Home>Sterilization>Sterilization Chemical Indicators>Type 6 Steam Chemical Indicator

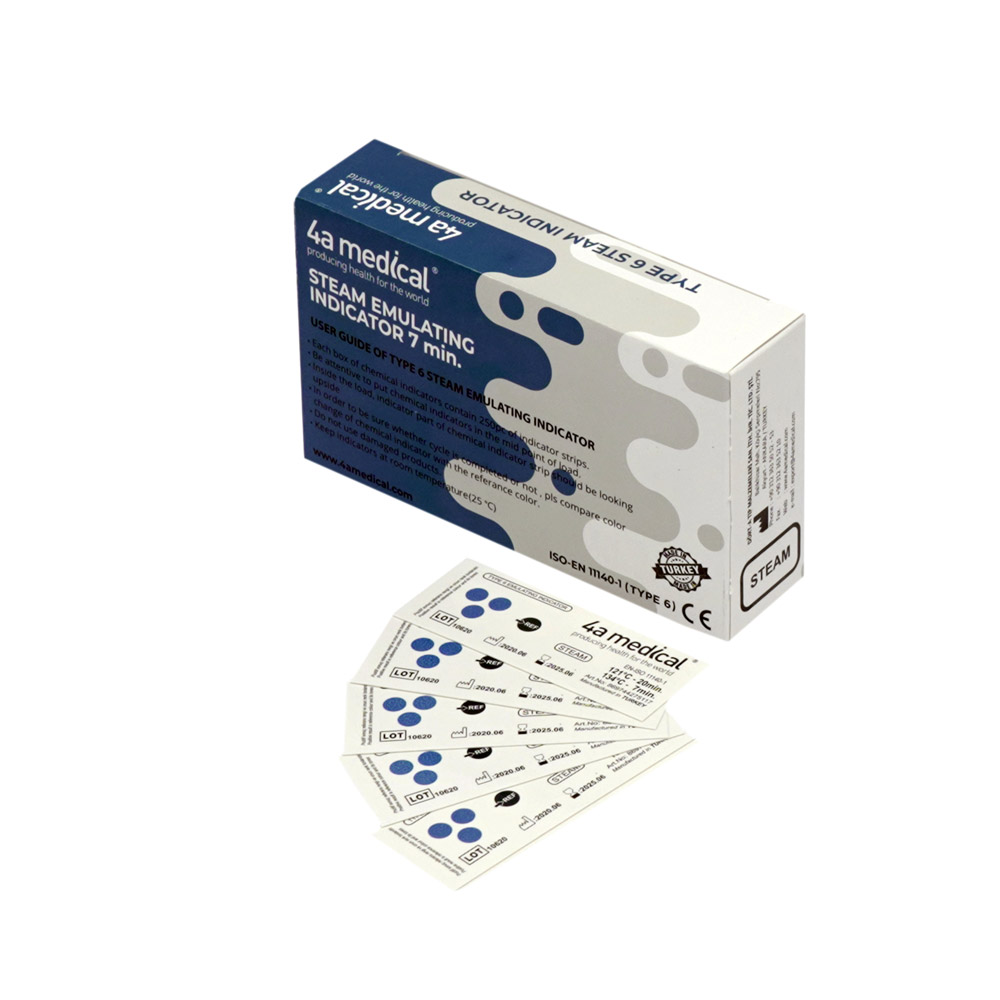

Type 6 Steam Chemical Indicator

In Stock

Type 6 Steam Chemical Indicator

Add your review

Steam Chemical Indicators are the products that are put into each sterilization package and that indicate success of the sterilization. Type 6 Steam Chemical Indicators are cycle verification indicators that confirm the presence or absence of specific time, temperature and pressure parameters during a cycle. Type 6 Steam Chemical Indicator 3,5 minutes operates up to 15 minutes at 121°C or up to 3,5 minutes at 134°C. Type 6 Steam Chemical Indicator 7 minutes operates up to 20 minutes at 121°C and up to 7 minutes at 134°C. We have the following Type 6 Steam Chemical Indicator types: Besides standart Type 6 Steam Chemical Indicator 3,5 minutes we have Self – Adhesive Type 6 Steam Chemical Indicator 3,5 minutes and Perforated Type 6 Steam Chemical Indicator 3,5 minutes. Besides standart Type 6 Steam Chemical Indicator 7 minutes we have Self – Adhesive Type 6 Steam Chemical Indicator 7 minutes and Perforated Type 6 Steam Chemical Indicator 7 minutes.

SKU:Product Code: 4AC6

TECHNICAL DATA SHEET
TYPE 6 STEAM CHEMICAL INDICATOR (3,5 min)
PRODUCT CODE :4AC6
RELATED STANDARDS :4A Medical Steam Indicator is clasified as Type 6 according to ISO 11140-1
standard.
Water 35%  (CAS # 7732-18-5)
Diacetone Alcohol 3%  (CAS # 123-42-2)
Proprietary Mixture 62%  (CAS # N/A)
PACKAGING 100 boxes in cardboard.

PRODUCT SPECIFICATIONS:
Each box contains 250 pieces indicator printed carton sheets. The indicator is
temperature, time and steam concentration sensitive.
STORAGE AND DISPOSAL :The expired products are not used. It’s kept in the places with room temperature
without humidity and sun lights. It shouldn’t be in contact with liquid. Damaged and
defective products are not used. Shelf life is 5 years after prodcution date. After
sterilization indicator keep sterilization colour for 6 month.

MANIFACTURER :

DORT-A TIP MALZEMELERI SAN. ITH. IHR. TIC. LTD. STI.
Balıkhisar Mahallesi, Köyiçi Serpmeleri, No:795 Akyurt, Ankara, Turkey
Tel: +90 312 363 50 52 / 53 Fax: +90 312 363 52 10
Web: http://www.4amedical.com E-mail: export@4amedical.com

Before Sterilization After Sterilization

INTENDED USE 4A Medical Steam Indicators are cycle verification indicators that confirm the
presence or absence of specific time and temperature parameters during a cycle.
The products allows the end user to identify incorrect packaging, load problems and
sterilization failures.

OPERATION CONDITIONS 4A Medical Steam Indicators are designed operate at steam cycle 134ºC – 3,5
minutes or 121 ºC – 15 minutes operation conditions.

CHEMICAL COMPOSITION The sterilization indicator ink used for printing contains following components in ppm levels.

Product NameQTYSize
Type 6 Steam Chemical Indicator1x250 pcs
